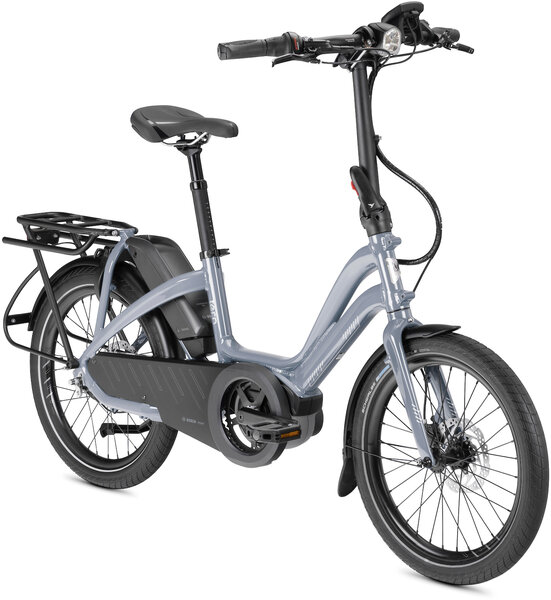

Tern NBD P8i

Tern NBD P8i
  • Color: Silver Blue
  • Color: Red
$3,200.00
Color:
Size: One Size
Please select options Unavailable
This item is not permitted to be shipped. However, it can be purchased online and picked up at your convenience. All online bicycle sales are subject to a $15 destination fee to be collected in store upon pickup. For larger bikes such as cargo bikes and other oversized bikes, the fee is $85 dollars. There is a $15 recycling fee for every e-bike battery sold with or separately from a bike. Please visit our policy page for more information.

Details

What Makes it a P8i?
- Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
- Bosch PowerPack 400 powers long trips, commutes, and journeys
- Shimano Nexus 8-speed internal hub
- Shimano hydraulic disc brakes for reliable stopping power-even when carrying cargo and riding fast
NBD Highlights
- Ultra-low 39 cm (15.4") standover height means gentle, low steps are all that's required to get on and go
- Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
- Fits riders 147—190 cm (4'10"—6'3")
- Gaia Rack is certified to carry up to 27 kg (60 lbs) and works with many child seats
- Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg (309 lbs) Maximum Gross Vehicle Weight

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Specs

Frame Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg
Fork Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg
Rims Kinetix Comp, for disc
Hubs Shimano Disc
Spokes Stainless Steel
Tires Schwalbe Big Apple, 55-406, puncture protection, Reflex
Bottom Bracket Motor integrated
Crankset Tern NBD custom, forged 6061-AL crankarm
Shifters Shimano 8 spd.
Rear Derailleur Shimano Nexus 8
Cassette/Freewheel 16T
Chain KMC for eBike, EPT corrosion resistant coating
Brakes Shimano, hydraulic disc
Brake Levers Shimano, hydraulic disc
Handlebars Tern Sweep, 6061-AL, Tern Andros adapted
Tape/Grips Ergon
Stem Tern Andros, adjustable, forged construction, patented technology
Headset Tern Flux by FSA, cartridge bearings, Physis integrated
Seatpost Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable
Saddle Tern Upright by Velo
Pedals MKS Platform, Tern custom design
Accessories & Extras BELL: Aluminum CHAINGUARD: Tern Custom, full chain cover KICKSTAND: Ursus, rear mount LUGGAGE SOCKET: Combo Mount FRONT LIGHT: Tern Valo Direct, 190 lumens REAR LIGHT: Herrmans FENDERS: SplashGuard, stainless hardware RACK(S): Gaia Rack, 27 kg capacity, Vertical Parking FRAME LOCK: ABUS, keyed-alike with Bosch battery
Motor Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 20 mph (US)
Battery Bosch PowerPack 400
Controller/Display Bosch Intuvia, 4 mode selectable, walk assist
Charger Bosch Standard Charger

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Red / One Size 810067160018 12-91-02
Silver Blue / One Size 812741029987 12-91-01 210000030006
